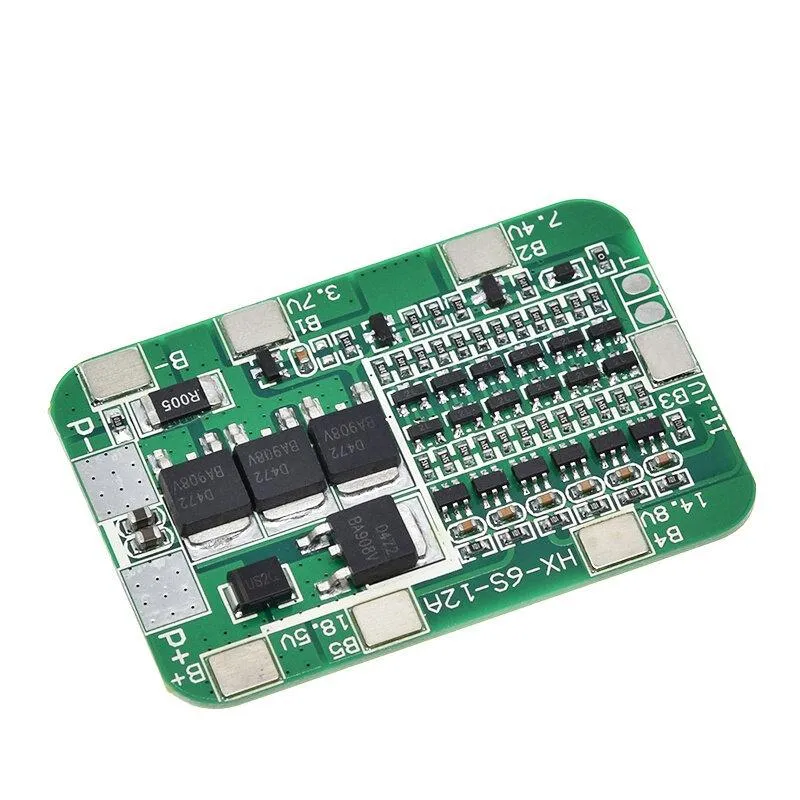

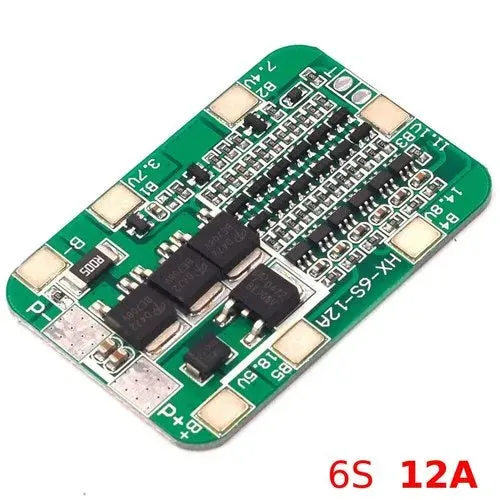

HX-6S-12A 6S 12A 22.2V BMS 18650 Lithium Battery Charger PCB
BMS (Battery Management System) – a battery management system that is designed to monitor the status of batteries, control the process of charging/discharging the battery, etc.

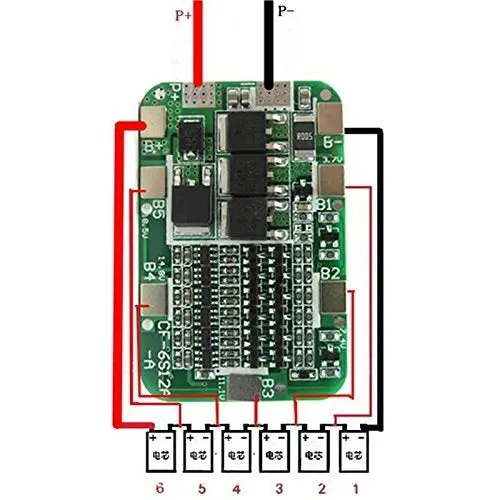

Six batteries (18650) can be connected simultaneously to this charge-discharge controller module. The module has protection against short circuit, overcharge and over-discharge. One of the functions of the charge controller is to turn off the power supply for the batteries when the maximum capacity of at least one battery is reached. This BMS controller is designed for more than 30,000 hours of operation. The maximum allowable current is 12 A.
If the maximum permissible value of the supply voltage is exceeded, the charge controller activates the “protection” mode. In order to restore the module, it is necessary to re-apply voltage to the input of the BMS board or wait a while until the charge controller automatically disables protection.
Features:
- Small size designed for a four-cell battery pack.
- Simple and convenient circuit for easy connections
- Over-charge/Over-discharge Protection.
SPECIFICATIONS
| Parameter | Values |
| Model | 6S BMS 12A |
| Charging Voltage | 22 V |
| Charging Current | 12 A (Max) |
| Operating Temperature | -40°C - 85°C |
| Maximum lampshift discharge current | 12 A |
| Overcharge detection voltage | 4.25 V ± 0.05 V |
| Over-discharge detection voltage | 2.50 V ± 0.08V |
| Overcurrent Protection | 50 A |
